Areas subject to explosion hazards, for example, coal milling collecting. Filter dust with high electrostatic charge, for example, mill powder and dust collection
- +92-41-2428417
- info@sb-filters.com
- Mon - Sat 8.00 to 18.00 Sunday Closed
Product Detail

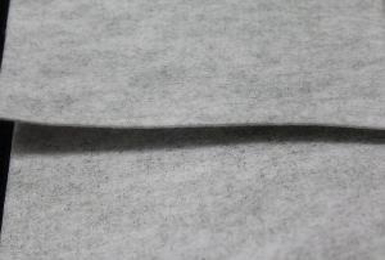

Main Types of Anti-Static Needle Felt
Intoduction
It is easily resulted in the explosion and conflagration after the consistency of common industrial powder and dust reaches the certain degree (explosion limit) if touching the static electricity light and spark outside, such as flour powder, chemical dust, coal powder etc. In the field of the dedusting filter bag, if we use the bag to collect dust, then the filter medium for bags must be anti-static.
Application
-
Explosion Hazards
Specifications
| Compositions | PET / Electric Scrim |
| 4. Physical Properties: (Can be customized) | |
| Weight（gsm） | 500 |
| Thickness (mm) | 1.7 |
| Width(mm) | ≤2.2m |
| Finish treatment | Singeing, Calendering, Heat setting |
| Surface resistance(Ω.cm) | 108 -103 |
| Air permeability(L/m2.s) | 200-300 |
| Tensile strength(N/5cm) - warp | ≥1100 |
| Tensile strength(N/5cm) - weft | ≥1500 |
| Tensile elongation(%) - warp | ≤35 |
| Tensile elongation(%) - weft | ≤60 |
| Heat shrinkage(%) - warp | ≤1.5 |
| Heat shrinkage(%) - weft | ≤1.0 |
| Temperature(℃) - Continue | 130 |
| Temperature(℃) - Instant | 150 |
| 5. Chemical Properties | |
| Anti-acid | Middle |
| Anti-alkali | Middle |
| Anti-abrasion | 150 |
| Anti-abrasion | Middle |
