Solid & Liquid Separation Cloth

Intoduction

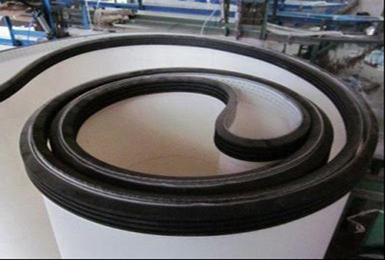

Rotary Drum Filters (RDF) operate under a high vacuum, rotating a drum into a “pan” or vat of slurry, dewatering and drying as the drum rotates out of solution and over to the cake discharge side. The filter media is caulked onto the drum and stays in the same place. De-watered and dried filter cake is discharged on the back side using gravity, air blow back, doctor blade or counter-revolving roll. Of these, the doctor blade can cause the most wear on the cloth.Rotary Vacuum Drum Filters (RVDF) also operate under high vacuum with a drum which rotates in a pan. However, in this design filter, the filter cloth comes off the drum and travels to a discharge system such as a doctor blade, cooch (helix) roll or gravity. After backwash, the cloths return to the pan to repeat the process. The RVDF filter cloth is held on the drum with edge guides using rope, coil springs or molded rubber (PIP) edging. .

Fiber Glass

Application

  • woven fabrics
    ..
  • polyester cloth
    polypropylene cloth and lightweight multi-filaments to heavy mono-filaments
  • Closures
    Clipper closure in stainless steel or Hastelloy; Typical cloth closures are manual sewing, Velcro, clipper lacing or zippers (or a combination of those methods).

Specifications

Compositions Airslide Fabric
Areal Weight range 40 oz/yd2 or 1350 g/m2.
Air permeability range 1800-2100 @200Pa l/dm² min
